Example of Dumping B-Rep Data from a .sat File
Summary
| ODA Product: | ODA Kernel SDK |
| Sample Name: | SATBrepSample |
| Categories: | C++ / Beginner / Working with .sat files / Android, iOS, macOS, Linux, Windows |
| Source Code Location: | Kernel/Examples/SATBrepSample |
Description
A console sample application that reads a specified .sat or .sab file and dumps its content to the terminal window.
Run Sample Application
To run the SATBrepSample sample application, please do the following:
-
Open the terminal window and go to the directory where the sample binary file is allocated:
-
For Windows® platforms:
<KERNEL_DIR>\exe\<version> -
For Non-Windows platforms:
<KERNEL_DIR>/bin/<version>
<KERNEL_DIR>is a directory where you unpacked the Kernel archive.To determine your
<version>parameter, please see the appropriate section in the Download Kernel SDK topic. -
For Windows® platforms:
-
Run the sample with appropriate arguments:
SATBrepSample <filename>filenameThe input .sat or .sab file to be dumped.

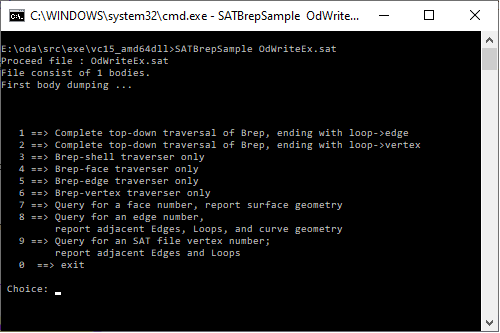

If the application executed properly, you will see the initial menu on your terminal screen:

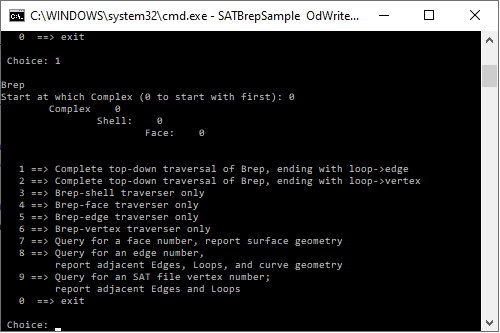

Below you can see an example of the program output when the user selects one of the main menu items:
