OdRxModule Class

Syntax

C++

class OdRxModule : public OdRxObject;

Description

This class provides the base implementation of custom applications (TX modules).

Corresponding C++ library: TD_Db

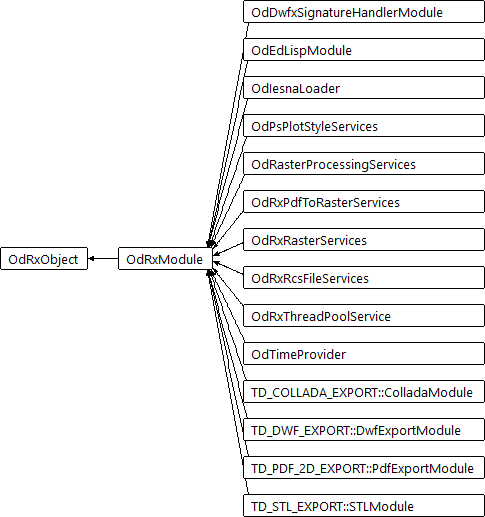

Class Hierarchy

File: RxModule.h

Module: API Reference

See Also

Creating Custom Applications

OdRxStaticModule, OdRxPseudoStaticModule, OdRxMacModule, OdRxUnixModule, OdRxWin32Module classes

Methods

Show:Inherited

No members matching the current filter

OdRxObject	Default constructor for this class. (Inherited from OdRxObject)
~OdRxObject	The virtual destructor for this class. (Inherited from OdRxObject)

Methods

Show:Inherited

No members matching the current filter

ODRX_DECLARE_MEMBERS
addRef	Declares the method incrementing the reference counter in objects derived from this class. (Inherited from OdRxObject)
cast	Casts the specified raw pointer to the smart pointer. (Inherited from OdRxObject)
clone	Creates a clone of this object, and returns a pointer to the clone. (Inherited from OdRxObject)
comparedTo	Compares another object to this one in a some meaning. (Inherited from OdRxObject)
copyFrom	details Copies the contents of the specified object into this object. (Inherited from OdRxObject)
deleteModule	Declares the method deleting (unloading) the rx-module.
desc	Returns the raw pointer to the class describing instance statically associated with this object as the OdRxClass object. (Inherited from OdRxObject)
initApp	Declares the notification method being called at the start of the client application.
isA	Returns the raw pointer to the class describing instance dynamically associated with this object as the OdRxClass object. (Inherited from OdRxObject)
isEqualTo	Returns true if and only if the specified object is equal to this one in a some meaning. (Inherited from OdRxObject)
isKindOf	Checks whether the object belongs to the specified class and returns true if and only if this object is an instance of the specified class or a subclass of the specified class. (Inherited from OdRxObject)
moduleName	Declares the method returning the module name for the rx-module instance.
numRefs	Returns the value of the reference counter, that is, the number of references to an instance of this class. (Inherited from OdRxObject)
queryX	Checks whether the object belongs to the specified class and returns a pointer to this object if this object can be converted to the specified class. (Inherited from OdRxObject)
release	Declares the method decrementing the reference counter in objects derived from this class. (Inherited from OdRxObject)
rxInit	for internal use (Inherited from OdRxObject)
rxUninit	(Inherited from OdRxObject)
sysData	Declares the method returning the system data for the rx-module instance.
uninitApp	Declares the notification method being called at the end of the client application.
x	Checks whether the object belongs to the specified class and returns a pointer to this object if this object can be converted to the specified class, or throws an exception if it cannot. (Inherited from OdRxObject)

Links

OdRxModule Methods
