ODA Kernel SDK
API Reference > OdBr Classes > OdBrTraverser Class
OdBrTraverser Class
Syntax
C++
class OdBrTraverser;

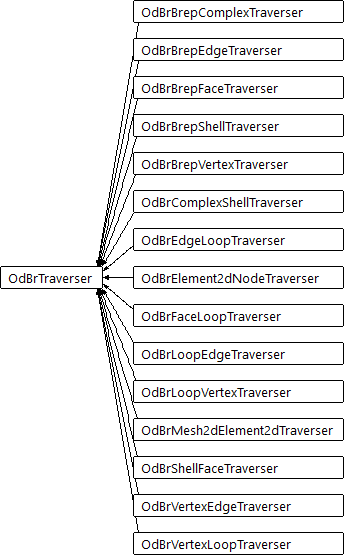

This class is the interface class for BREP traversers.

OdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverserOdBrTraverser

File: BrTraverser.h

Module: API Reference

TD_Br



done
Returns true if and only if the full topological adjacency list has been traversed with the next() function.
getValidationLevel
isEqualTo
Returns true if and only if the specified Traverser object is equivalent to this Traverser object.
isNull
Returns true if and only if this Traverser object is empty.
next
Sets this Traverser object to reference the next object in the topological adjacency list.
restart
Sets this Traverser object to reference the object that it would normally return first.
setValidationLevel
Validation
