Summary
| ODA Product: | ODA PRC SDK |
| Sample Name: | OdPrcExCommands |
| Categories: | C++ / Beginner / Commands for working with .prc files / Android, iOS, macOS, Linux, Windows |
| Source Code Location: | CommonApplications/Prc/Examples/OdPrcExCommands |
Description
This sample contains a set of commands that represent all example cases from OdPrcCreate. Commands are joined into a dynamic module (OdPrcCommands_*.tx file) which can be loaded and used in any application hosted by ODA Platform (for example, in the OdaPrcApp sample application).
Source files are available in the Prc/Examples/OdPrcExCommands folder. Release packages (archives) contain a Visual Studio solution for the Windows platform, a CMake file, and a pre-built binary executable file.
Usage
To run any command from the OdPrcExCommands module:
-
Start the OdaPrcApp sample application, then create a new file or open an existing one, which activates items on the Edit and Tools menus.
OdPrcApp sample application with a newly created file looks like at the following picture:
-

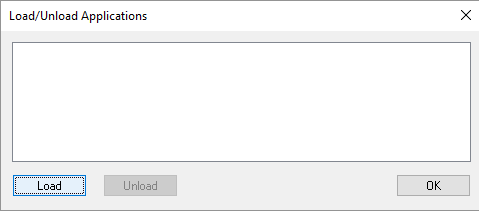

Select Tools -> Load application to begin loading the OdPrcCommands_*.tx module.
-
Click Load, select the OdPrcExCommands*.tx module in the ODA PRC SDK binary folder, and click Open.
-
To run any command from the OdPrcCreate sample, select an item from Edit -> Registered Commands -> PRC create example (for example, Create Complex Example).
-

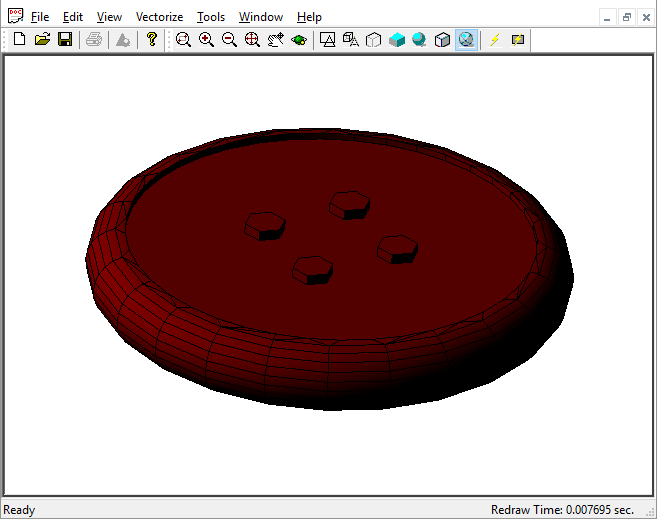

Check the result of the command by switching to vectorization mode.
See Also:
A Sample Console Application that Illustrates Creation of a .prc File with Different EntitiesMFC Sample Viewer Application for ODA PRC SDK
ODA PRC SDK Sample Applications
